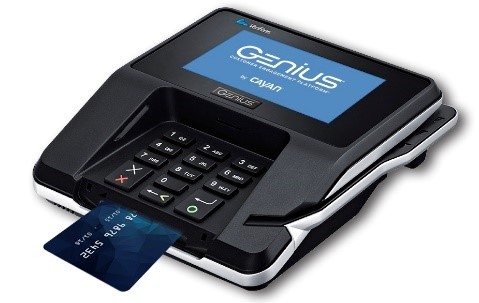

Installing Your Payment Terminal - Genius



To integrate the Cayan Genius Terminal with IRIS, first go to the BackOffice.

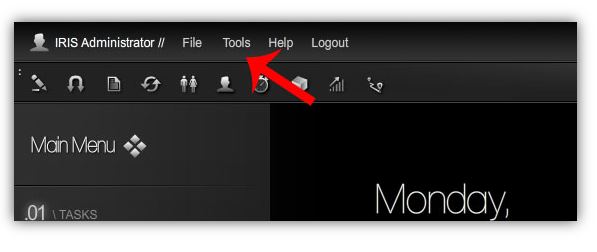

• Click TOOLS on the top left side of the screen.

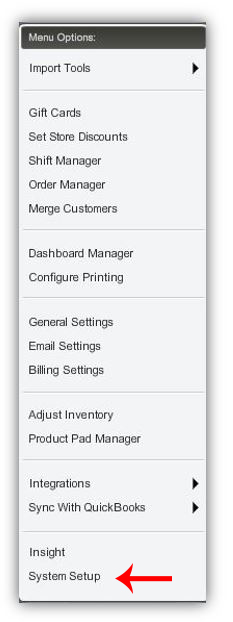

• Select SYSTEM SETUP from the drop down.

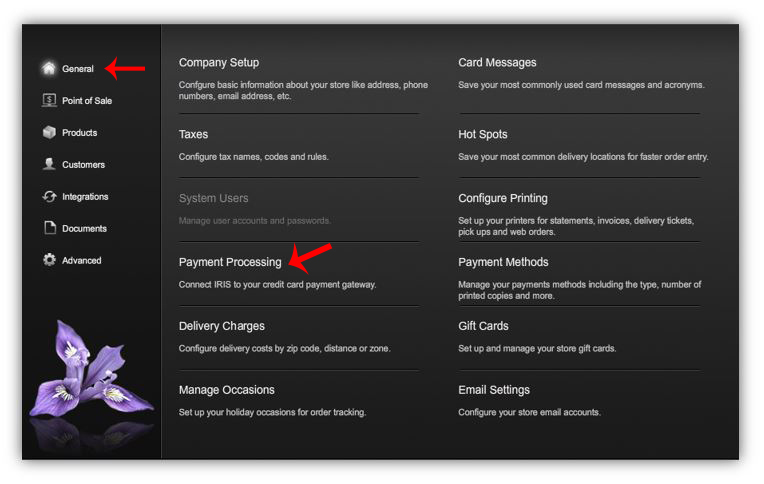

• Once in the System Setup window, select PAYMENT PROCESSING from the GENERAL tab.

• When the window opens, it will display payment processing options.
• Select the CAYAN tab.
• Enter your:
  1. Merchant Key
  2. Merchant Site ID
  3. Merchant Business
• Once complete, click the CONFIGURE TERMINAL button.

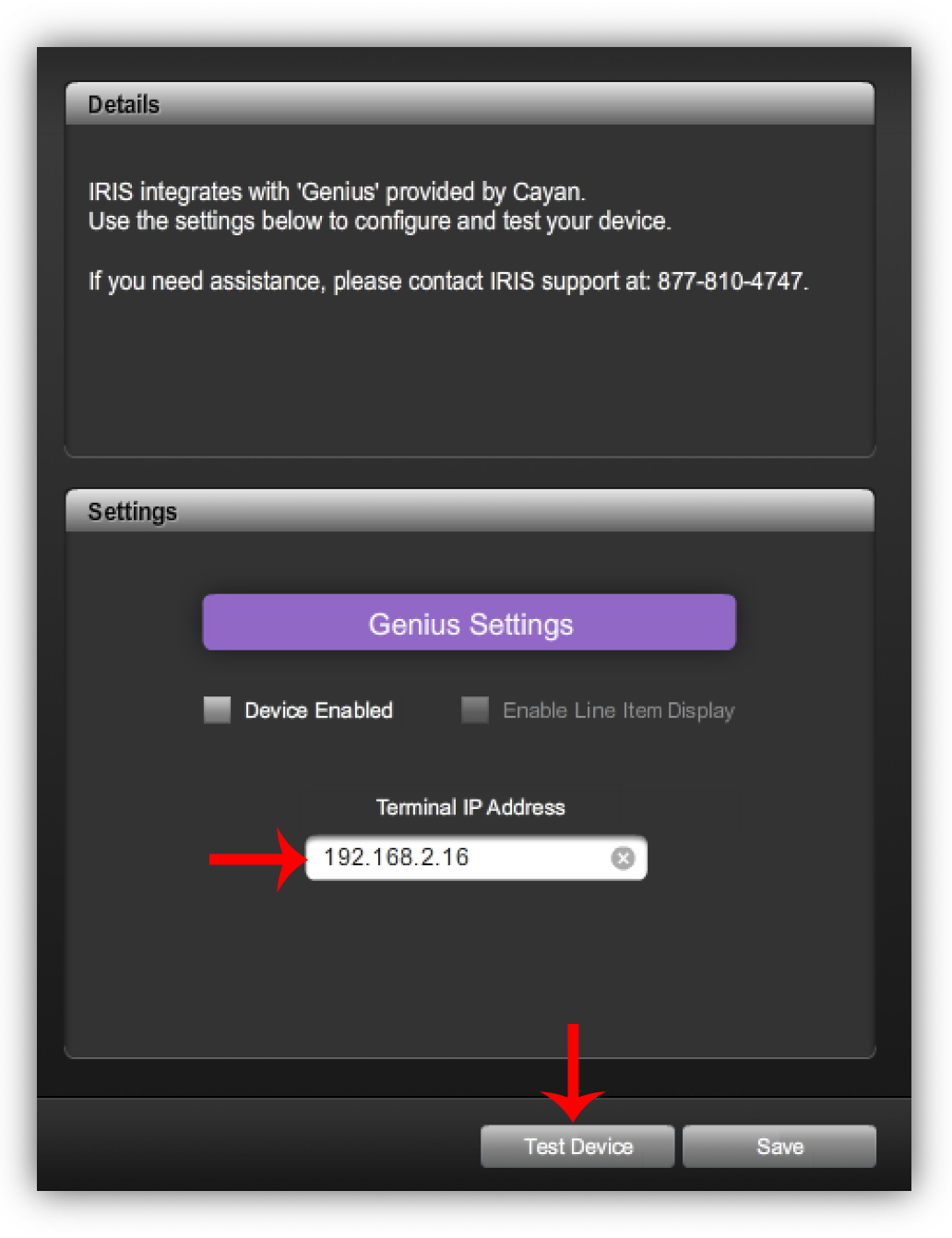

• When the Terminal Configuration window opens, enter your TERMINAL IP ADDRESS in the designated field.
  • To Locate the Terminal IP Address:

    • From the idle screen- press 000 on the key pad.

    • Enter the ADMIN PASSWORD (9416557).

    • Press the ENTER button.

    • The Terminal IP Address will be the first thing displayed.

    • Press the CANCEL button to return to the Idle screen.

• Click the TEST DEVICE button.

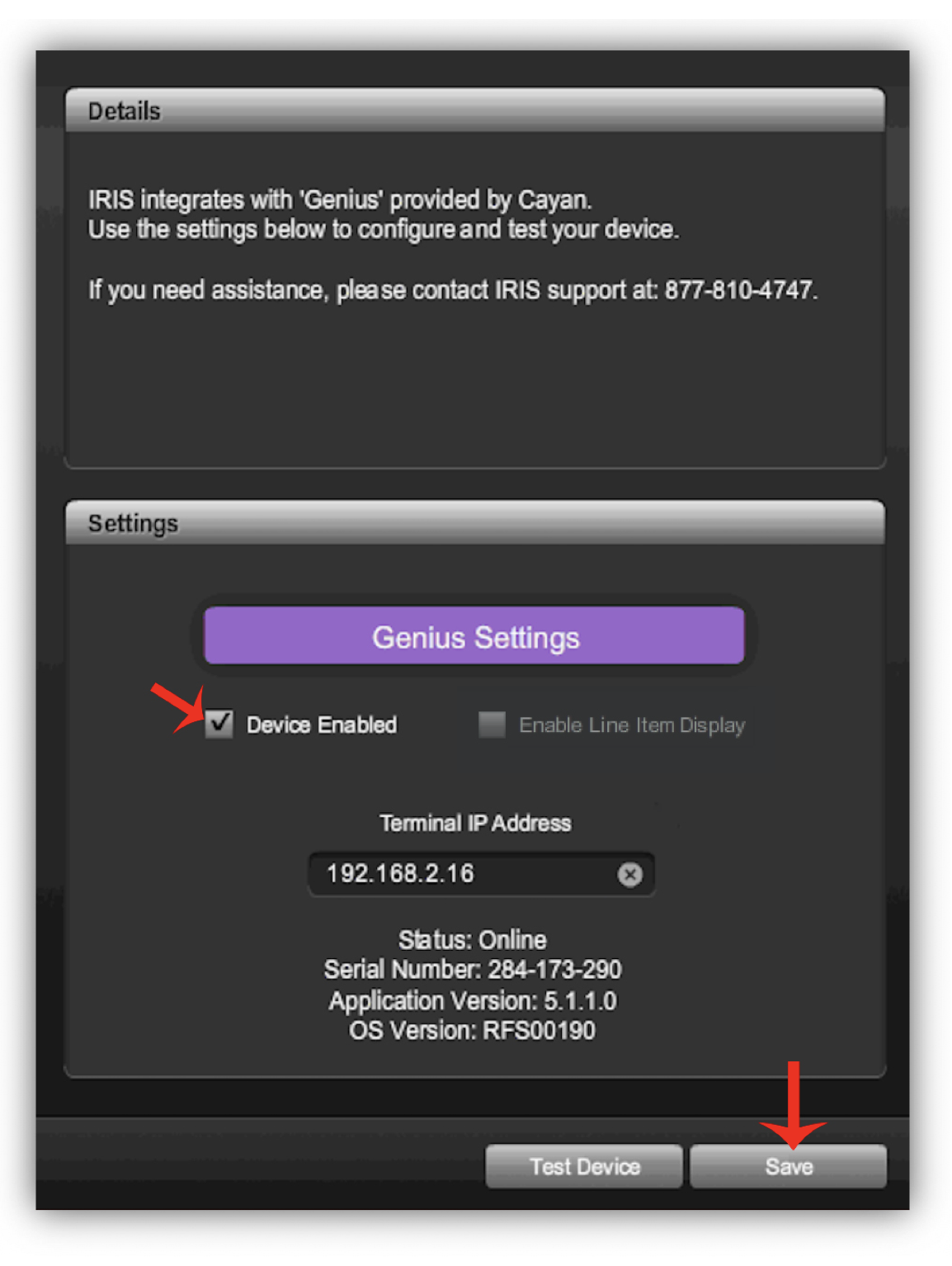

• Once the device is verified, check the DEVICE ENABLED box.
• Leave the ENABLE LINE ITEM DISPLAY box UNCHECKED.
• Once complete, click the SAVE button and log out of IRIS.

• Upon login, your Genius Terminal is ready to use.

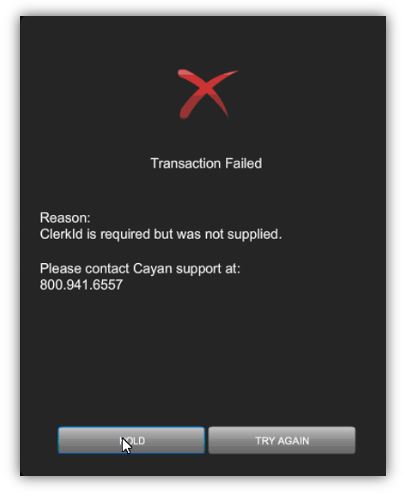

While setting up the terminal, if you get a Transaction Failed Error (pictured below) log out and log back into Iris. Make sure that the license key has been entered.
